Sonoff Dualr3 met esphome!

[Michel]

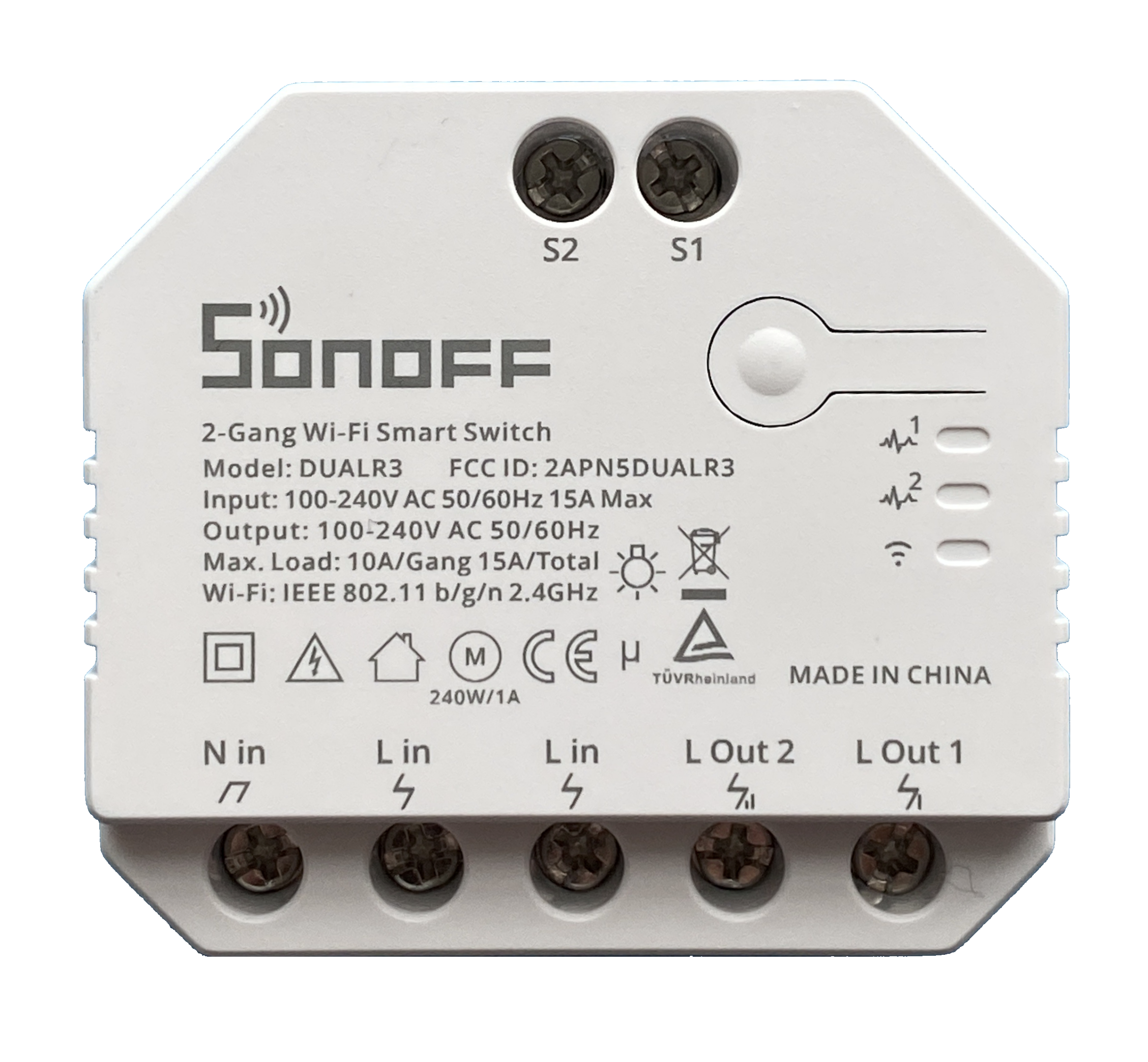

Van de week de nieuwe Sonoff DualR3 binnen gekregen en heb er gisterenavond mee kunnen spelen.

Na wat onderzoek zojuist de config geschreven voor esphome en werken!





Config:



substitutions:
  devicename: sonoff_dualr3
  long_devicename: Sonoff DualR3

esphome:
  name: $devicename
  platform: ESP32
  board: esp32dev

wifi:
  ssid: !secret esphome_wifi_ssid
  password: !secret esphome_wifi_password
  power_save_mode: light
  ap:
    ssid: $devicename
    password: !secret esphome_ap_password

captive_portal:

api:
  password: !secret esphome_api_password

ota:
  password: !secret esphome_ota_password

web_server:
  port: 80

logger:
  baud_rate: 0

# remove # below to enable ble tracking
#esp32_ble_tracker:

uart:
  rx_pin: RX
  baud_rate: 4800

sensor:
  - platform: wifi_signal
    name: "WiFi Signal $long_devicename"
    update_interval: 60s
#  - platform: cse7766  #The actual chip on the DualR3 is a CSE7761, no driver available yet!
#    update_interval: 5s
#    current:
#      name: "$long_devicename Current"
#    voltage:
#      name: "$long_devicename Voltage"
#    power:
#      name: "$long_devicename Power"
#      id: power
#      on_value_range:
#        - above: 1.0
#          then:
#            - logger.log: "$long_devicename Power above 1.0A"
#        - below: 1.0
#          then:
#            - logger.log: "$long_devicename Power below 1.0A"

output:
  - platform: gpio
    pin: GPIO27
    id: relay1
  - platform: gpio
    pin: GPIO14
    id: relay2

switch:
  - platform: output
    name: "$long_devicename - relay 1"
    output: relay1
    id: sw1
  - platform: output
    name: "$long_devicename - relay 2"
    output: relay2
    id: sw2

status_led:
  pin:
    number: GPIO13
    inverted: yes

binary_sensor:
  - platform: gpio
    pin:
      number: GPIO0
      mode: INPUT_PULLUP
      inverted: True
    name: "$long_devicename button"
    on_press:
      - logger.log: "$long_devicename button"
      - switch.toggle: sw1
  - platform: gpio
    pin:
      number: GPIO32
      mode: INPUT_PULLUP
      inverted: True
    name: "$long_devicename switch 1"
    on_press:
      - logger.log: "$long_devicename switch 1"
      - switch.toggle: sw1
  - platform: gpio
    pin:
      number: GPIO33
      mode: INPUT_PULLUP
      inverted: True
    name: "$long_devicename switch 2"
    on_press:
      - logger.log: "$long_devicename switch 2"
      - switch.toggle: sw2



Meer informatie op de Home Assistant hobbybob website van Paul en mij :



The new Sonoff DualR3 is here! - espthings.io

[iemand]

Is een mooi kassie. Hier ook al in gebruik👍
